SPECIFICATIONS

Beam Quality ㎡: <1.1

Brand Name: FOCUSLASER

Certification: ce,CE

Character Size: 0.5-110mm

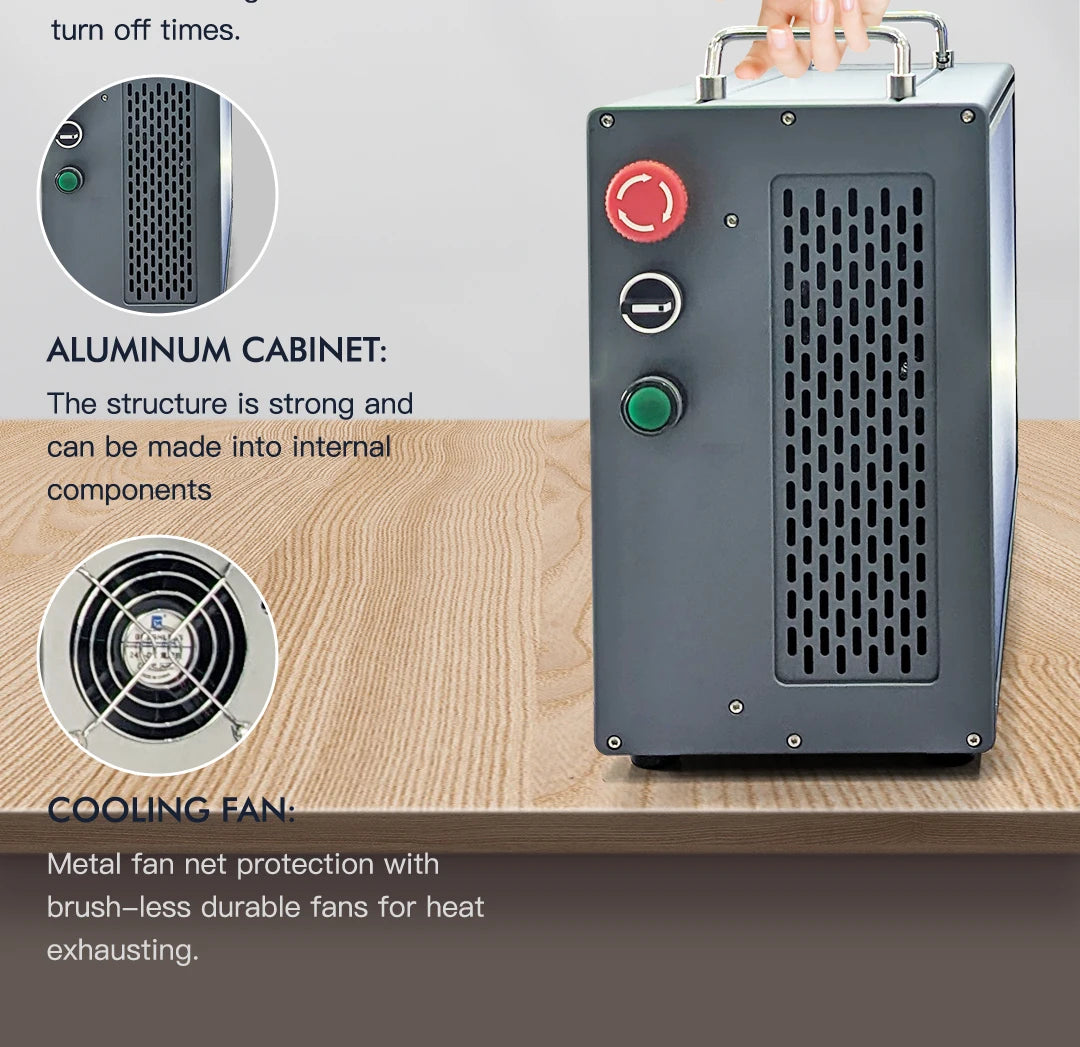

Cooling System: Air Cooling

Engraving Range: 70*70/110*110/175*175/200*200/300*300mm

Engraving Speed: ≤9000mm/s

FOCUSLASER Model: FLFB

High-concerned chemical: None

JPT MOPA M7 Series Pulse Frequency Range: 1-4000KHZ

JPT MOPA M7 Series Pulse Width: 20W / 30W 2-350ns ,60W / 80W / 100W 2-500ns

JPT Pulse Frequency Range: 1-600KHZ

JPT Pulse Width: 200ns

Laser Module Brand: JPT/Raycus/Mopa M7

Laser Source Power: 20W/30W/50W/60W/100W

Laser Wavelength: 1064nm

Lens Brand: Singapore Wavelength F-theta

Minimum Line Width: 0.01mm

Model Number: FEB

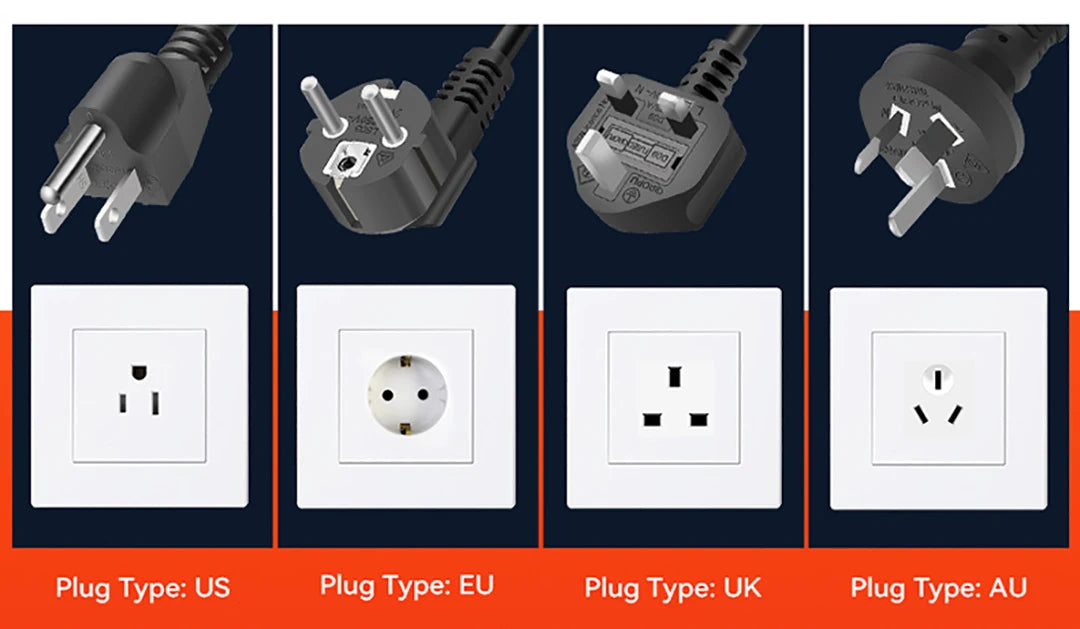

Operating Voltage: AC 110V/220V 50/60HZ 5A

Origin: Mainland China

Power Supply: Meanwell/Hengfu

Raycus Pulse Repetition Rate: Raycus 20W/30W 30-60KHZ / Raycus 50W 50-100KHZ

Raycus Pulse Width: 20QS 120-150ns / 30QS 130-160ns / 50QB 120-150ns

Repetition Precision: ±0.003mm

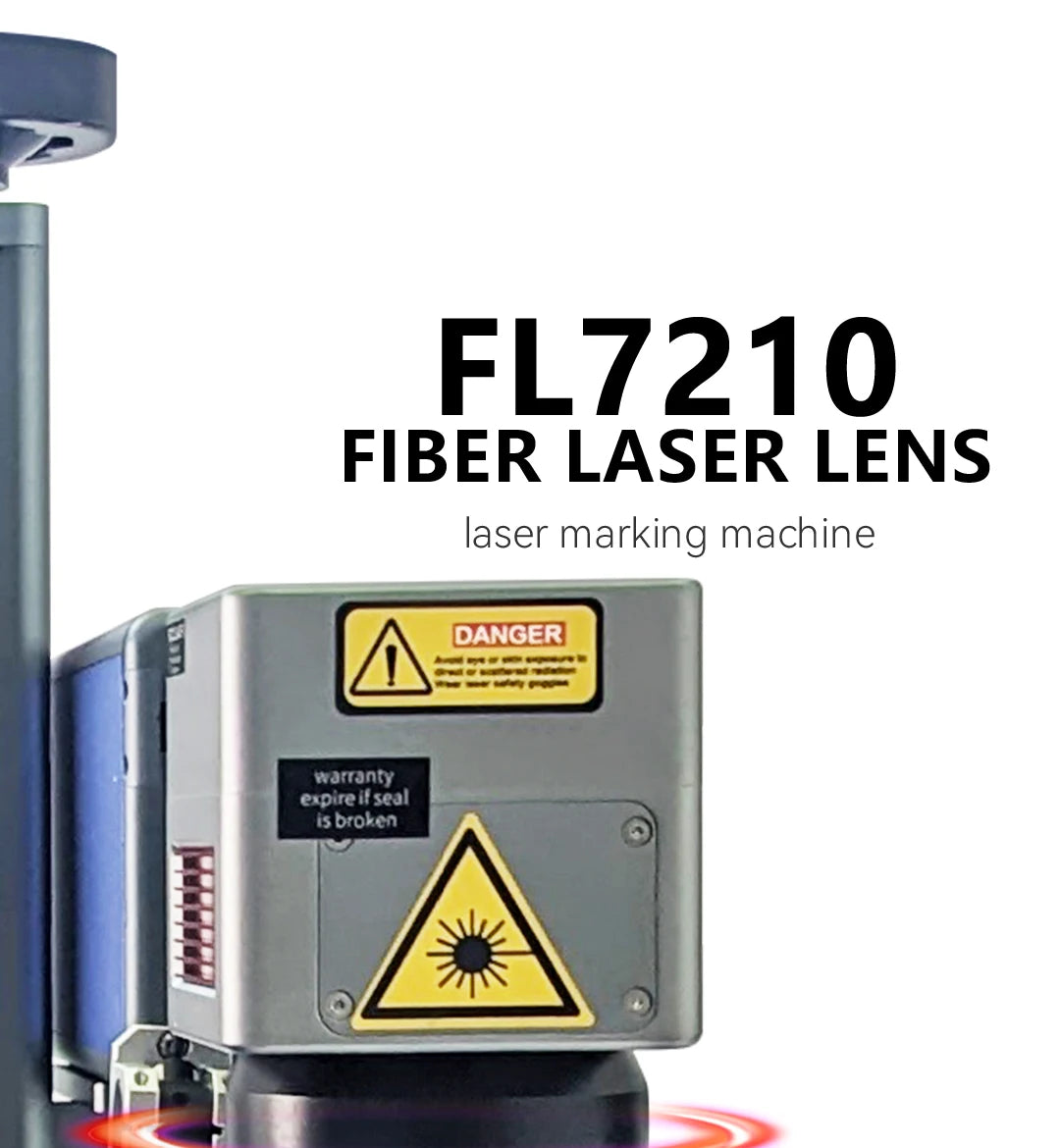

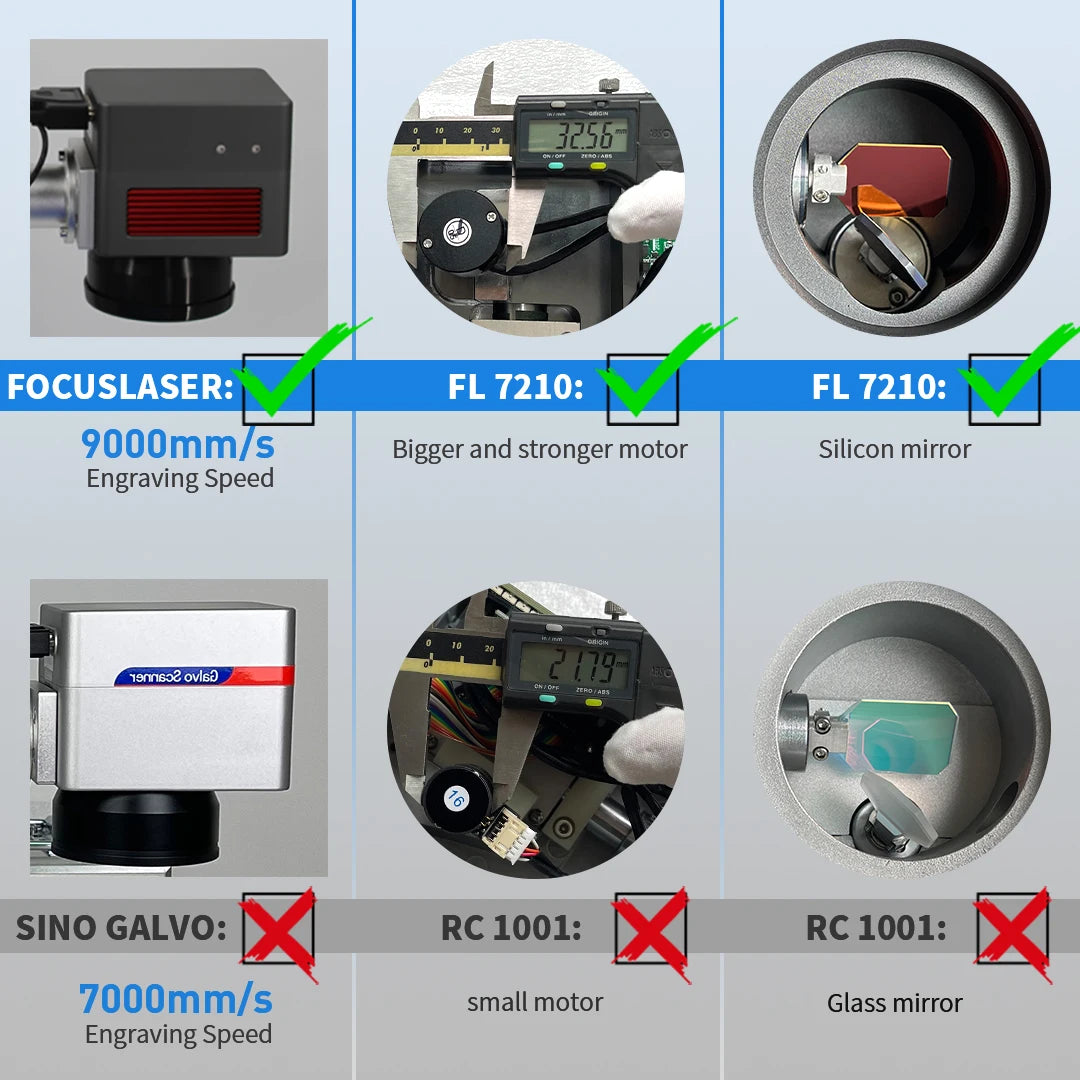

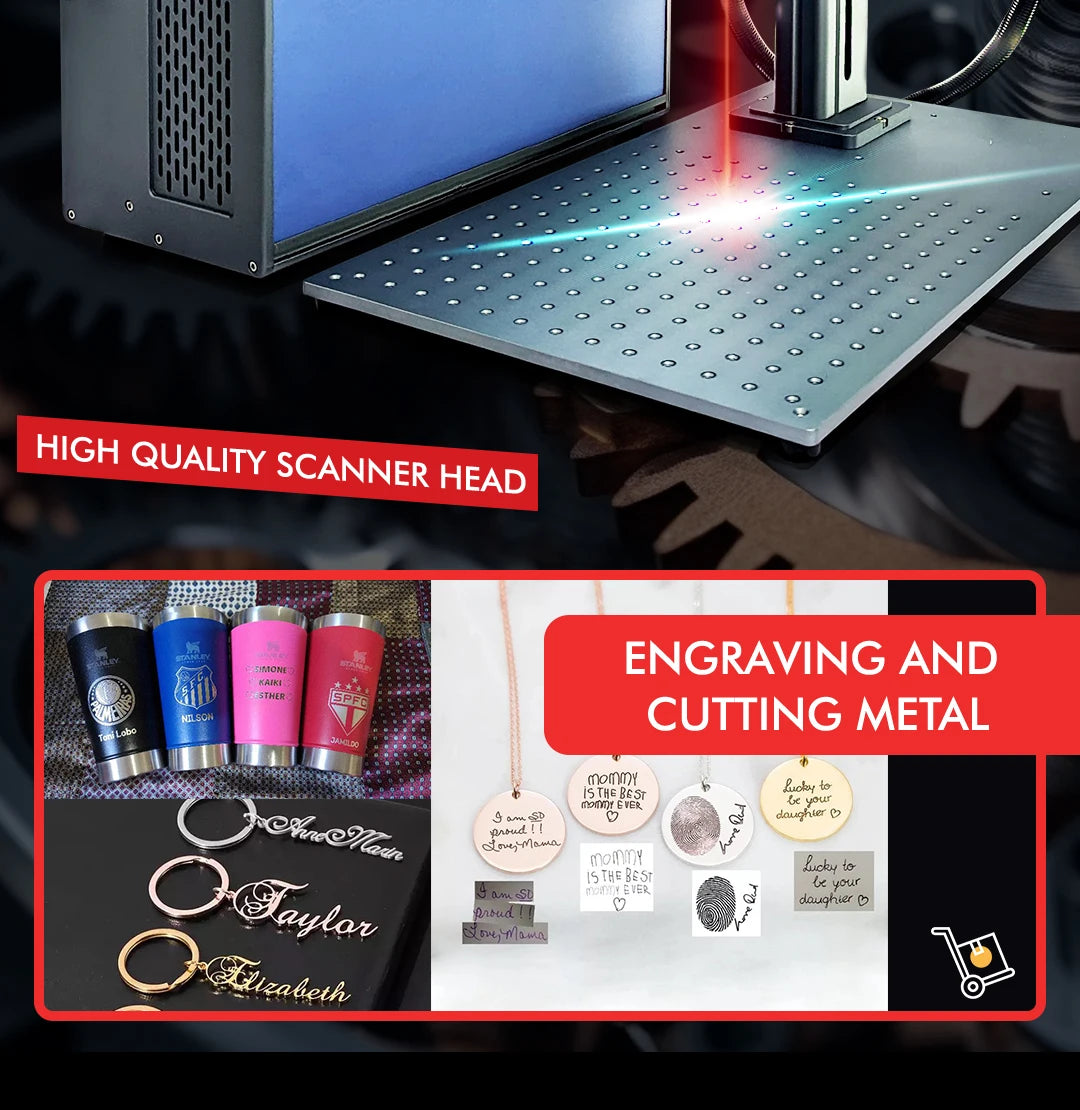

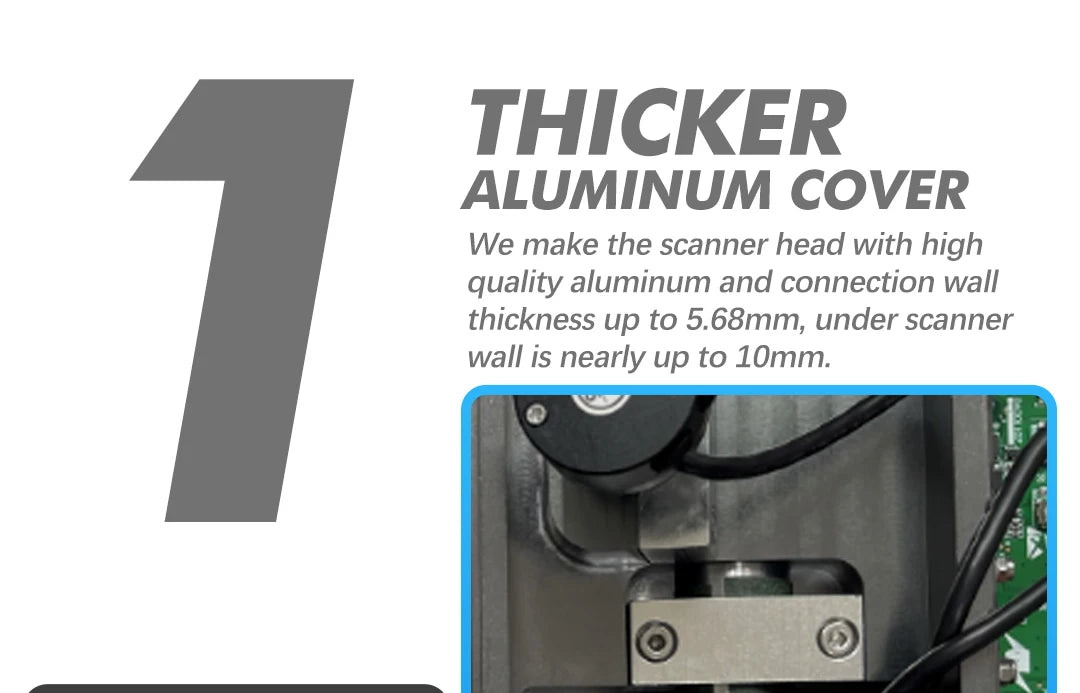

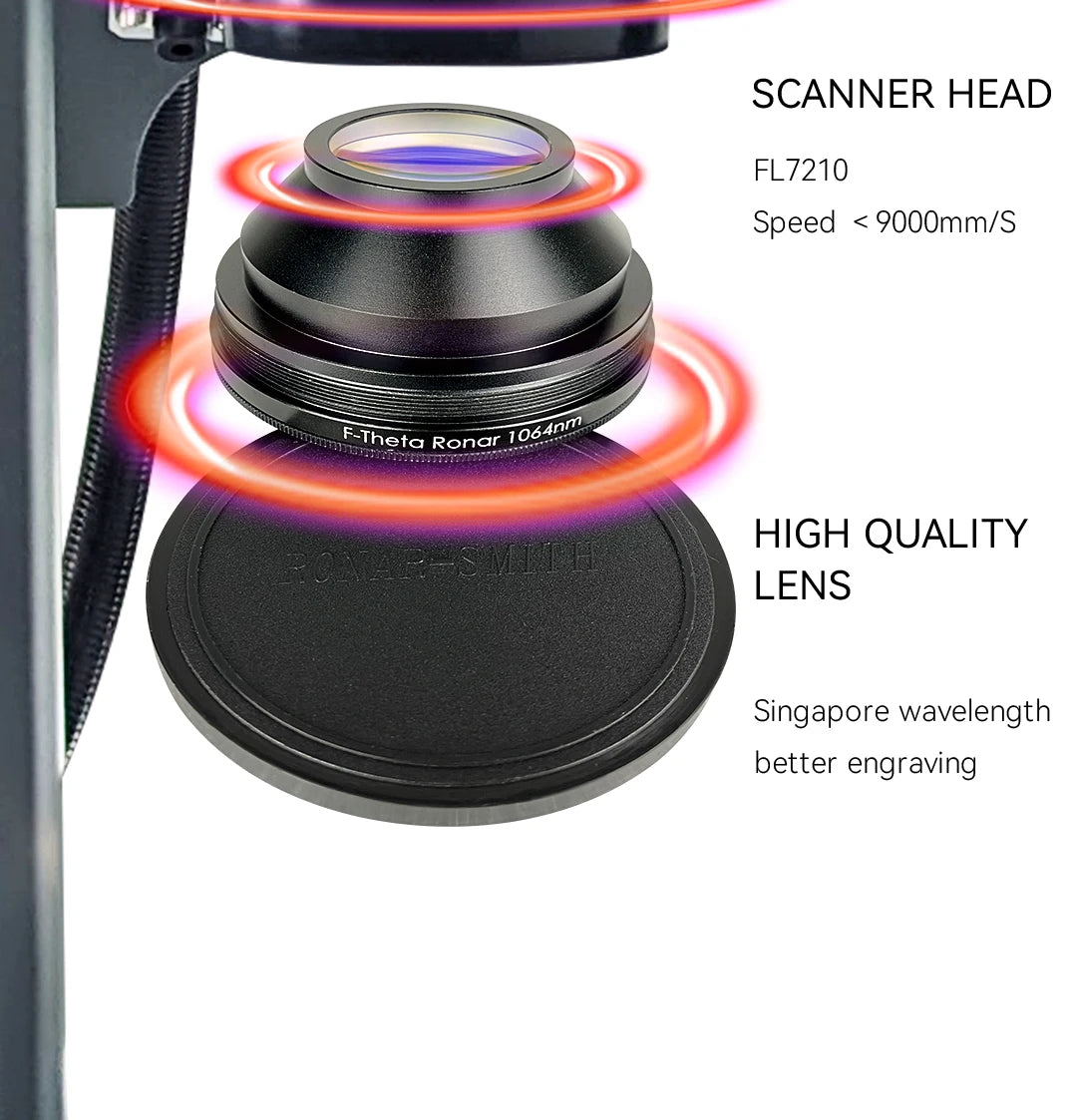

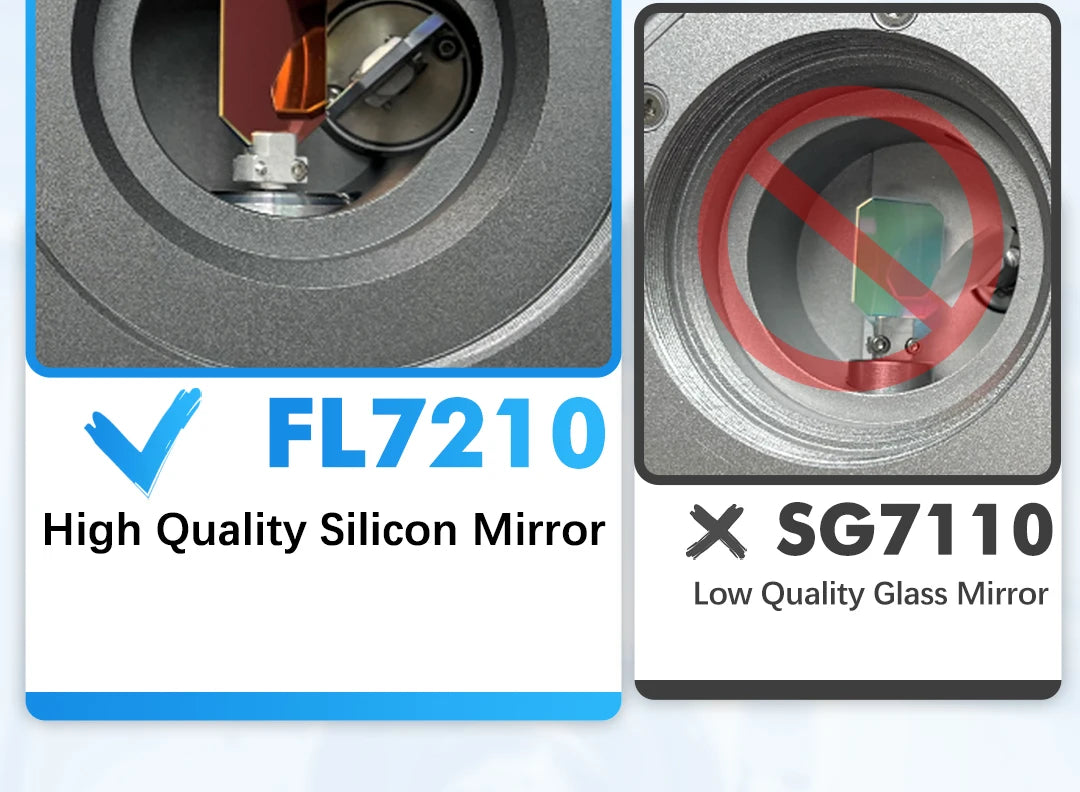

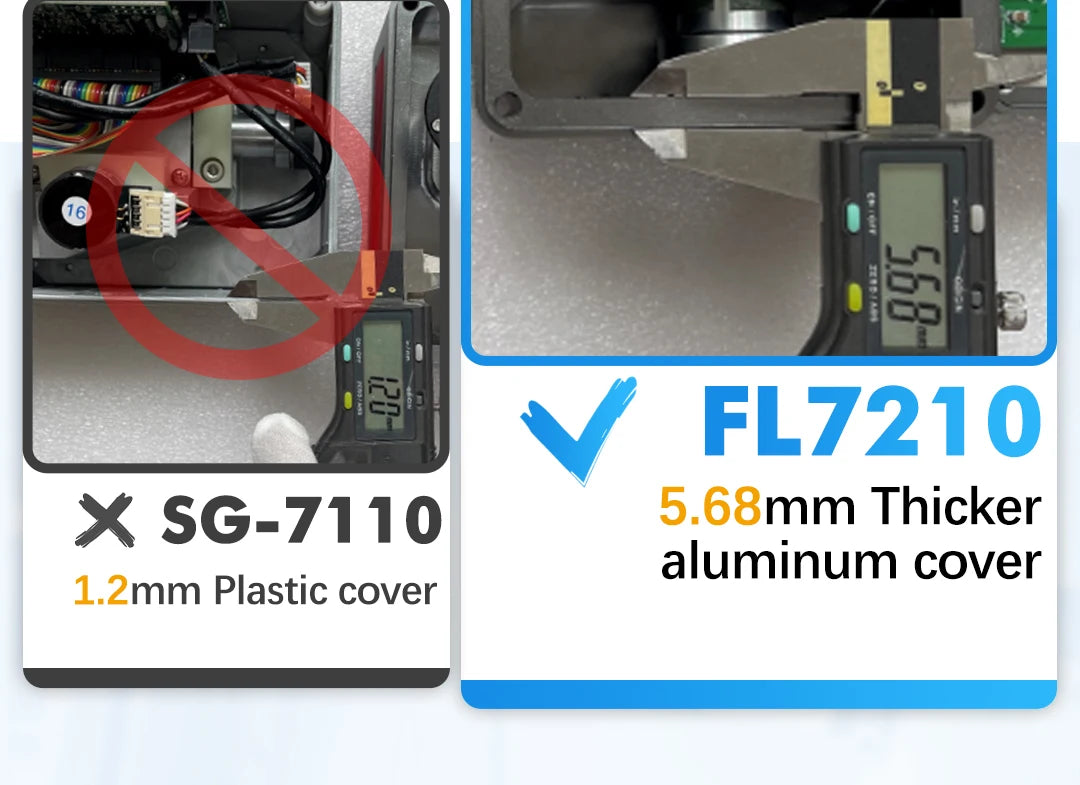

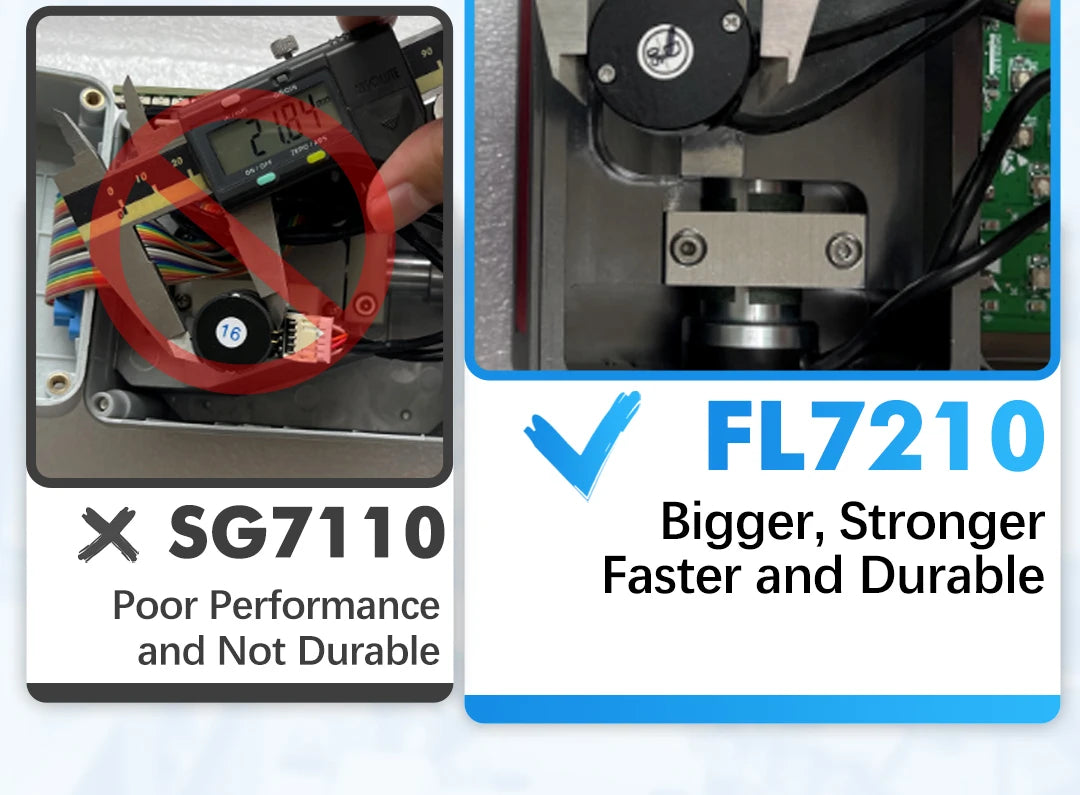

Scanner: FL7210

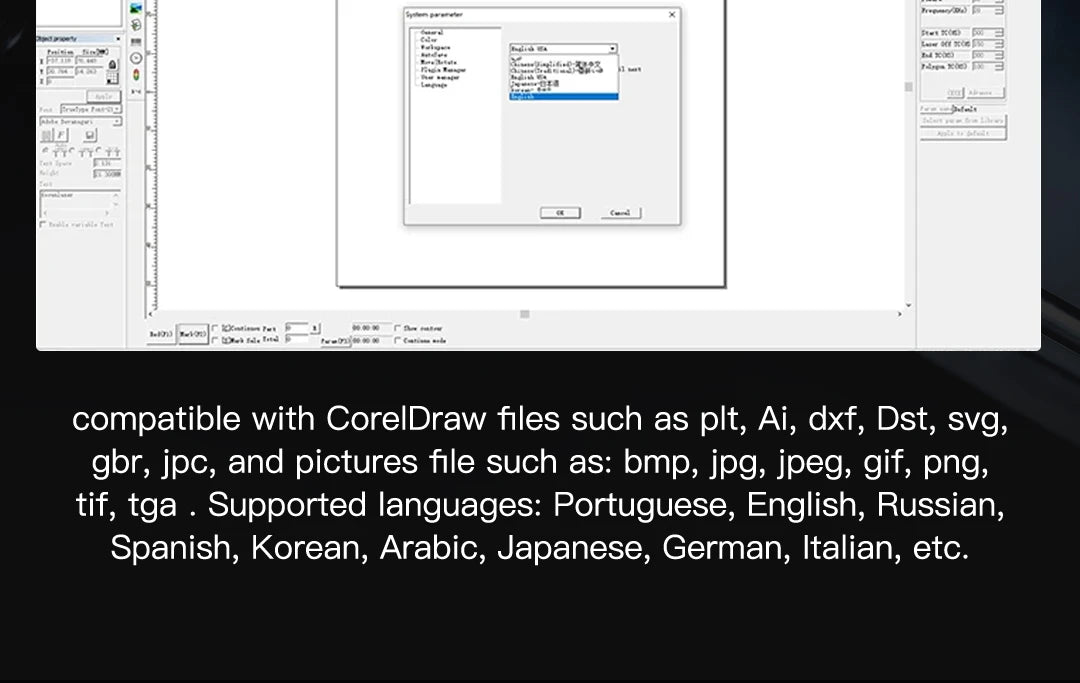

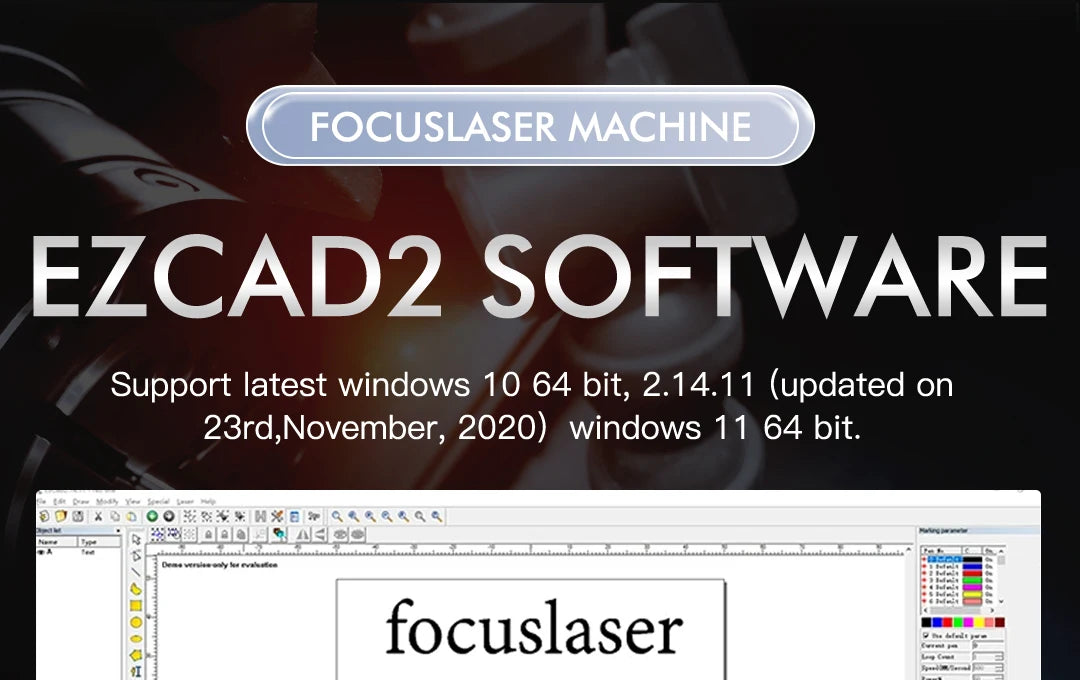

Software: Ezcad 2

Warranty: 12 months

Working Temperature Range: 10-30℃

operating syste: EZCAD2
